绝对式编码器外壳 DS-90 | 坚固的封装设计

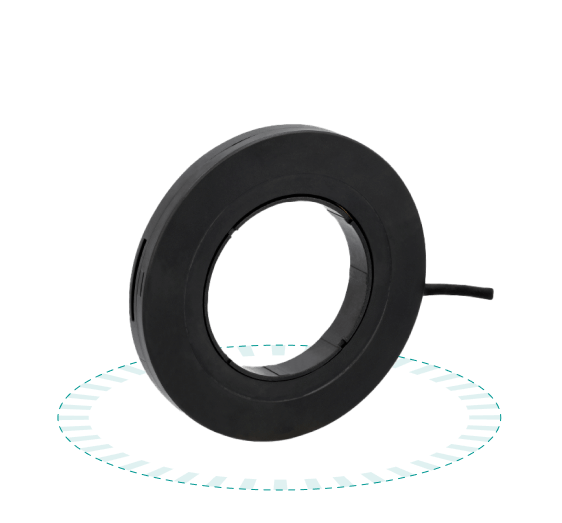

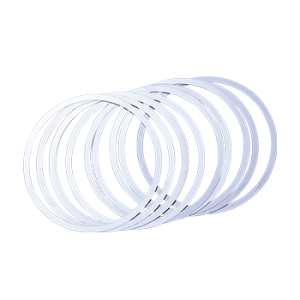

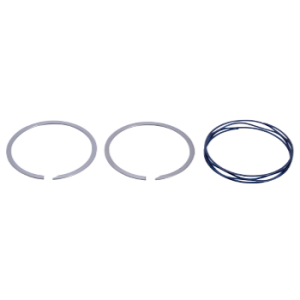

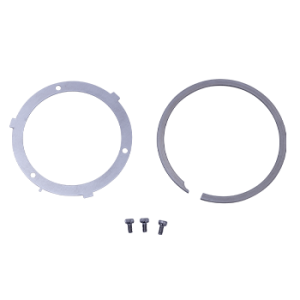

DS-90

Netzer DS-90 绝对旋转式编码器专为以下应用而设计 高性能应用要求 精度、耐用性和可靠性的高性能应用。.具有 23 位分辨率精度达到 0.006 度该非接触式编码器具有 优异的长期稳定性适用于航空航天、机器人和工业自动化领域。其 中空、低质量设计优化了集成度，同时增强了动态响应，为高端运动控制提供一流的旋转反馈。

与我们的技术专家聊聊

下载资源

Features

23-bit resolution for high-precision applications
Robust EMI and RFI shielding for interference-free operation
Contactless sensing ensures zero mechanical wear
Hollow shaft architecture for optimized integration
Extended durability with temperature-stable design

优点

High precision
Durability
Low Profile
Repeatability

外径

90 mm
内径

50 mm
厚度

10 mm
重量

55 gr
分辨率

17-23 bit
绝对定位精度

±0.006°˚

技术指标

下载资源

订购代码

General

Angular resolution 17-23 bit
Nominal position accuracy ±0.010°
Nominal position extended accuracy (EA) ±0.006°
Repeatability 0.7 mdeg / 2.5 Arcsec
Maximum operational speed 2,000 rpm
Measurement range Single Turn Absolute with optional shaft turn counter
Build In test BIT Optional
Rotation direction Adjustable CW/CCW (Default same direction from bottom side of the encoder)

Mechanical

Allowable mounting eccentricity ±0.1 mm
Allowable axial mounting tolerance ±0.1 mm
Rotor inertia 4,242 gr · mm²
Total weight 55 gr
Outer Ø /Inner Ø/ Height 90 / 50 / 10 mm
Material (stator / rotor) Ultem™ polymer / TRVX-50

Electrical

Supply voltage
Current consumption
Interconnection
Communication
Output code
Serial output
Clock frequency
Position update rate

Environmental

EMC IEC 6100-6-2, IEC 6100-6-4
Operating temperature range -40°C to +85°C
Storage temperature -50°C to +85°C
Relative humidity 98% Non condensing
Shock endurance / functional 100 g for 11 ms
Vibration functional 20 g 10 - 2000 Hz (per MIL-STD-810G)
Protection IP 40

创建您的订购代码

外径
- 16 mm (ID - 4 mm)
- 25 mm (ID - 6 mm)
- 37 mm (ID - 10 mm)
- 40 mm (ID - 10 mm)
- 58 mm (ID - 20 mm)
- 70 mm (ID - 30 mm)
- 90 mm (ID - 50 mm)
- 130 mm (ID - 90 mm)
通讯类型
- BiSS
- SSi
分辨率
- 16 bit
- 17 bit
- 18 bit
- 19 bit
- 20 bit
- 21 bit
- 22 bit
- 23 bit
BIT
- Disabled
- Enabled
出线类型
- Metal Sleeve
- Without connector
- Connector DF-13-6P-1, 25-H
- 仅电线
- 护套和屏蔽电缆
- 屏蔽电缆
线缆长度
- 500 mm Flying leads - 30AWG
- 750 mm Flying leads - 30AWG
- 1000 mm Flying leads - 30AWG
- 250 mm Flying leads - 28AWG
- 500 mm Flying leads - 28AWG
- 750 mm Flying leads - 28AWG
- 1000 mm Flying leads - 28AWG
- 250 mm Flying leads - 30AWG
更高精度
- 已启用
- 标准
