坚固耐用的绝对旋转式编码器 DS-37

DS-37

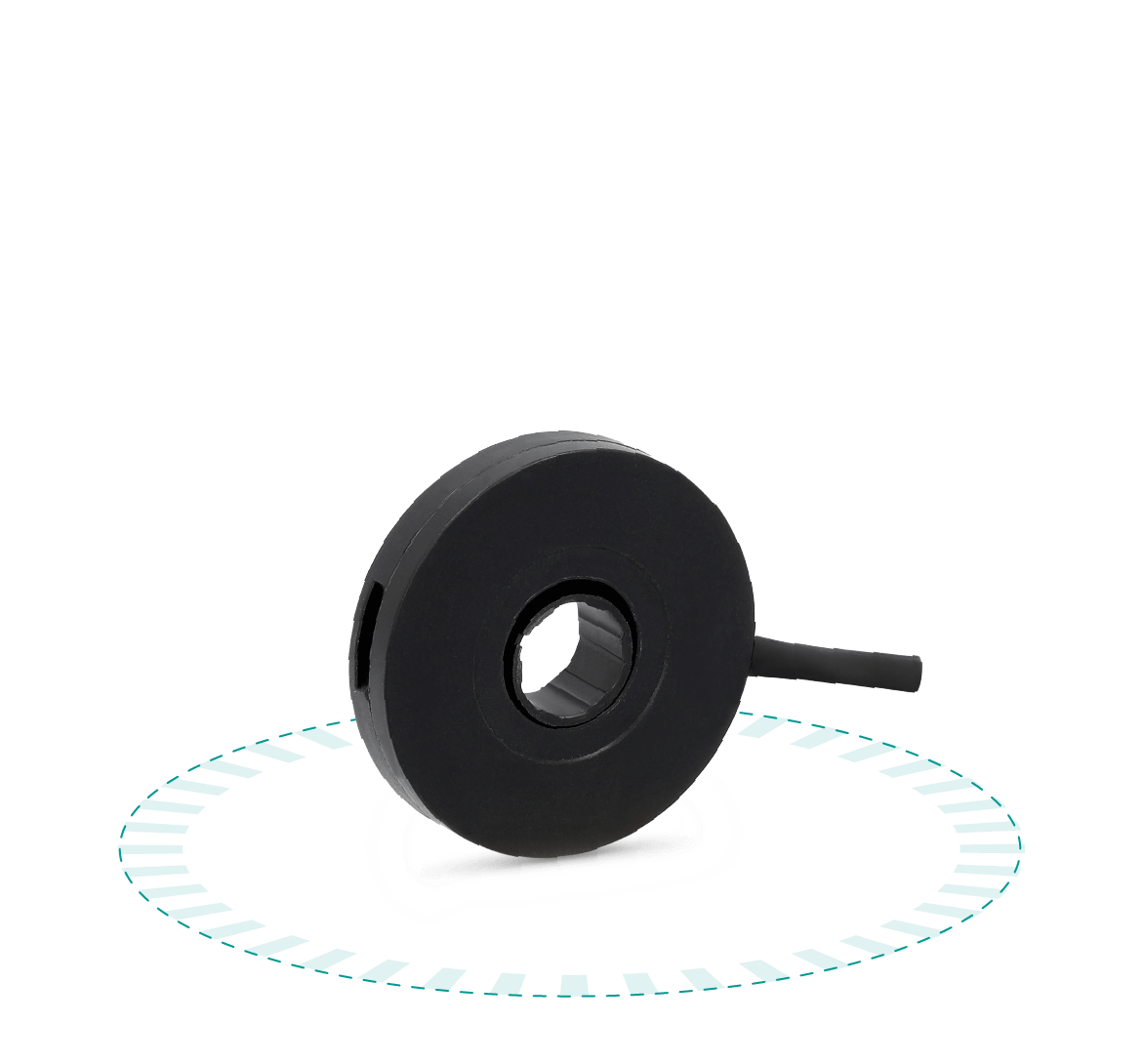

Netzer DS-37 绝对旋转式编码器专为满足工业自动化、机器人和航空航天系统的严格要求而设计。 工业自动化、机器人和航空航天系统的严格要求。.具有 23 位分辨率精度为 0.025 度该编码器提供 无磨损、非接触式操作确保长期稳定性。其 轻质空心设计最大限度地减少了惯性并提高了效率，是要求高精度和耐用性的系统的重要组件。 高精度和耐用性.

与我们的技术专家聊聊

下载资源

Features

23-bit resolution for exceptional precision
EMI, RFI, and magnetic field-resistant design
Contactless capacitive sensing for wear-free durability
Hollow shaft structure for seamless system integration
Optimized for compact, space-efficient applications

优点

Immunity to Magnetic
Durability
MTBF 15
Repeatability

外径

37 mm
内径

10 mm
厚度

8 mm
重量

20 gr
分辨率

17-23 bit
绝对定位精度

±0.025°˚

技术指标

下载资源

订购代码

General

Angular resolution 17-23 bit
Nominal position accuracy ±0.025°
Nominal position extended accuracy (EA) ±0.010°
Repeatability 2.7 mdeg / 9.9 Arcsec
Maximum operational speed 4,000 rpm
Measurement range Single Turn Absolute with optional shaft turn counter
Build In Test BIT Optional
Rotation direction Adjustable CW/CCW (Default same direction from bottom side of the encoder)

Mechanical

Allowable mounting eccentricity ±0.1 mm
Allowable axial mounting tolerance ±0.1 mm
Rotor inertia 71 gr · mm²
Total weight 20 gr (with 250 mm cable)
Outer Ø /Inner Ø/ Height 37 / 10 / 8 mm
Material (stator / rotor) Ultem™ polymer / TRVX-50

Electrical

Supply voltage 5V ± 5%
Current consumption ~90 mA
Interconnection #30 shielded cable
Communication SSi / BiSS-C
Output code Binary
Serial output Differential RS-422
Clock frequency 0.1- 5.0 MHz
Position update rate 95K

Environmental

EMC IEC 6100-6-2, IEC 6100-6-4, MIL-STD-461-RS103, MIL-STD-461-RE102
Operating temperature -40°C to +85°C
Storage temperature -50°C to +85°C
Relative humidity 98% Non condensing
Shock endurance / functional 100 g for 6 ms
Vibration functional 20 g 10 – 2000 Hz (per MIL-STD-810G)
Protection IP 40

创建您的订购代码

外径
- 16 mm (ID - 4 mm)
- 25 mm (ID - 6 mm)
- 37 mm (ID - 10 mm)
- 40 mm (ID - 10 mm)
- 58 mm (ID - 20 mm)
- 70 mm (ID - 30 mm)
- 90 mm (ID - 50 mm)
- 130 mm (ID - 90 mm)
通讯类型
- BiSS-C
- SSi
分辨率
- 16 bit
- 17 bit
- 18 bit
- 19 bit
- 20 bit
- 21 bit
- 22 bit
- 23 bit
BIT
- Disabled
- Enabled
出线类型
- Metal Sleeve
- Without connector
- Connector DF-13-6P-1, 25-H
- 仅电线
- 护套和屏蔽电缆
- 屏蔽电缆
线缆长度
- 500 mm Flying leads - 30AWG
- 750 mm Flying leads - 30AWG
- 1000 mm Flying leads - 30AWG
- 250 mm Flying leads - 28AWG
- 500 mm Flying leads - 28AWG
- 750 mm Flying leads - 28AWG
- 1000 mm Flying leads - 28AWG
- 250 mm Flying leads - 30AWG
更高精度
- 已启用
- 标准
